M100 payoff is an extremely light weight aluminum basket with very low inertia and drag. It is designed for use with small bundles of very light wire. Adjustable drag brake is standard.

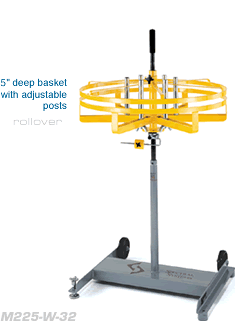

M225 is a steel constructed general purpose manual payoff suited for wires between .015" and .062" (.4 to 1.6mm) diameter and light strip. It is available with a 32" (812mm) diameter basket and choice of a 5" (127mm) depth, a 1" (25mm) lip or completely flat.

M500 is a versatile, rugged steel constructed manual payoff suitable for either wire bundlesbetween .030" and .125" (.75 3.2mm) and strip to 2" (50mm) plus, depending on thickness and material type. All models include an adjustable drag brake. A wide range of basket diameters and depths is available: 38", 45", 48", 52" (.96, 1.14, 1.22, 1.32m) diameters and 6", 1" (150, 25mm) deep or flat.

M2000 payoff for carriers is available with the Single Point Center or bolt adjust center and is equipped with a band style drag brake. It has a brake foot pedal for fast stopping requirments. It is designed with a catch ring to prevent wire spillage.

M3000 series is a manual payoff engineered to handle large diameter, high tensile wires up to 0.560 (14mm). Designed for applications paying off large diameter high tensile wires where a powered machine is not required or ceiling heights restrict loading. The exclusive 3 mode manual braking system simplifies tension control and enhances safety.

M3300 is a large diameter wire manual payoff for heavy load carriers and loose bundles. High tensile wire containment is provided by the exclusive swash top design which also features a snap lock handle to speed installation and removal. Equipped with a hydraulic disc brake

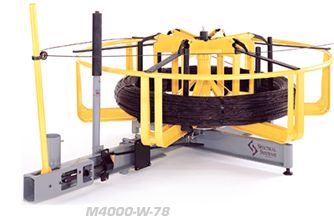

M4000 is designed for applications paying off large diameter high tensile brake solves the problem of having too much braking force at startup and too little to prevent the payoff from over speeding.

M5000 is a large diameter wire manual payoff for heavy load carriers payoff in the manual series, it is also equipped with a hydraulic disc brake.



Warranty :: Three years



Weight capacity from 100 to 6,600 lbs (45 - 3000kg)

Wire diameter ranges form .002" to .625" (.08 -15.9mm) Strip widths to 2" (50mm) plus

Basket style payoffs include a top for vertical containment

M100 through M500 have wheels for easy movement

M2000 and larger are forklift and pallet-jack accessible





Dancer Arm
a pneumatic cylinder controls the restoring force to the dancer arm

as wire is demanded, the dancer arm is pulled inward and the brake is released causing the payoff to "free wheel"

when the demand stops or the payoff starts to over speed the arm falls back and the brake is applied

Hydraulic Brake
long-life industrial duty hydraulic disk brake can supply over 5,000 in*lbs (560 N*m) of braking torque if required

Safety
electrical E-Stop interface circuit is standard






CAPACITY
pounds

RANGE
inches

MATERIAL
fabrication

MAX DIM
inches

MIN ID 1
inches

PAYOFF HT
inches

MOTOR
horsepower

SHIP WT
pounds




M100-W-24
M225-W-32
M500-W-38

100
225
500

.003-.045
.015-.062
.015-.080

Aluminum
Steel
Steel

24.0
32.0
38.0

5.0
5.5
8.0

37 - 49
37 - 49
37 - 49

Drag
Drag
Drag

60
105
140




M2000-C-38
M3300-W/C-72

2000
3300

.025-.148
.080-.205

Steel
Steel

38.0
72.0

11.0
12.0

13.0
38.0

Band
Hydraulic

425
900



M3000-W/C-84
M3000-W/C-78
M3000-W/C-72

3000
3000
3000

.125 - 560
.125 - 560
.125 - 560

Steel
Steel
Steel

84 x 16
78 x 16
72 x 16

12.0
24.0
24.0

38.0
37.0
37.0

Hydraulic
Hydraulic
Hydraulic

2000
2000
2000



M4000-W-72
M4000-W-78
M5000-W/C-60

4000
4000
5500

.090-.500
.090-.500
.080-.205

Steel
Steel
Steel

72.0
78.0
60.0

30.0
30.0
12.0

30.0
30.0
38.0

Hydraulic
Hydraulic
Hydraulic

975
1075
800

    1 Minimum I.D. is 16 inches with centering posts removed. This requires optional removeable centering posts (wire may not site completely on the bottom of the basket)
