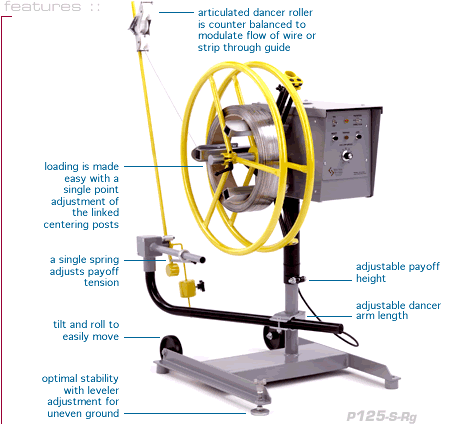

suitable for fine wire, shaped wire and small strip

standard configuration is best suited for payoff under 200 fpm (60 m/min)

high speed version allows for payoffs of over 300 fpm (90m/min)

regenerative D.C. drive maintains positive control of wire bundle



Warranty :: Two years






CAPACITY
pounds

RANGE 1
inches

RPM 2

SPOOL DIA 3
inches

MIN ID
inches

PAYOFF HT
inches

MOTOR
horsepower

SHIP WT
pounds



P125
P125-HP
P180

125
125
180

.008 -.063
.008 -.063
.008 -.063

0 - 60
0 -125
0- 30

8.75 -15.0
8.75 -15.0
8.75 -15.0

N/A
N/A
N/A

32-50
32-50
32-50

1/8 DC
1/4 DC
1/4 DC

335
335
350
    1 Larger wires or strip can be handled with a heavier dancer arm.
2 Other RPM ranges available
3 Optional “booster feet” extend I.D. to Ø19”
