this series is designed primarily for feed rates less than 150 fpm (45 m/min), however, higher feed rates are possible in custom configurations

the positive overload clutch, option available on all P150 models, ensures maximum power transfer from gear box to payoff platform while increasing safety to operators and eliminating potential overload damage to drivetrain

this series is available in three basket diameters, each spool capable

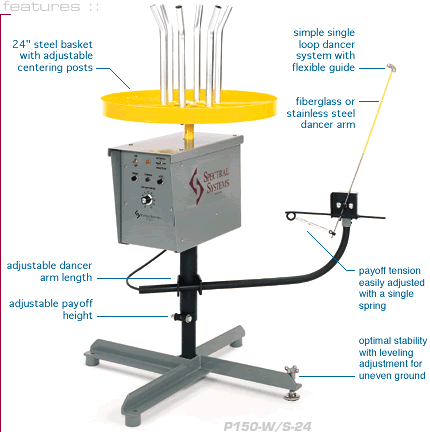

32" (810 mm) and 24"(610 mm) diameter steel baskets with tubular centering posts and 1"(25mm) lip

14"(355 mm) diameter aluminum basket with a 1" (25mm) lip allows for a minimum coil ID of 3" (75 mm)

shipped UPS, assembles in less than one hour

Warranty :: Three years









CAPACITY
pounds

RANGE 1
inches

RPM 2

BASKET DIM
inches

MIN ID
inches

PAYOFF HT
inches

MOTOR
horsepower

SHIP WT 3
pounds



P150-14-W/S
P150-24
P150-32
P150-SA
P150-HP

150
150
150
150
150

.003 - .040
.003 - .040
.003 - .040
.003 - .040
.003 - .040

0 - 110
0 - 110
0 - 110
0 - 110
0 - 140

13.5
24.0
32.0
Optional
Optional

3.0
4.0
4.0
Varies
Varies

39 - 49
39 - 49
39 - 49
30 - 36
39 - 49

1/8 DC
1/8 DC
1/8 DC
1/8 DC
1/4 DC

140
140
155
140
140


P150-TT

150

.003 - .040

0 - 110

Optional

Varies

24 - 30

1/8 DC

120



P65-W/S
P65-W/S

65
65

.002 - .020
.002 - .020

0 - 110
0 - 220

Optional
Optional

2.5
2.5

39-49
39-49

1/8 DC
1/4 DC

130
130

  1 Larger wires or strip can be handled with a heavier dancer arm.
2 Other RPM ranges available
3 Ships UPS or FedEx
