Performance
typical payoff rates up to 200 fpm (60 m/min) in the standard configuration

2 HP and 3 HP (1.5 or 2.2 kW) AC vector models are capable of over 350 fpm (105 m/min) depending on bundle diameter, weight and wire type

Engineering

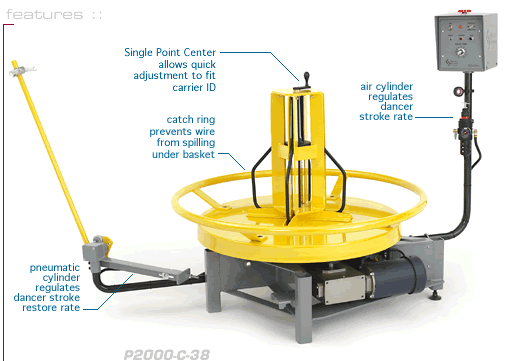

the Single Point Center adjusts to the ID of the carrier and may be adjusted while the carrier is being lowered to provide stability and prevent wandering

Options
heavy duty pneumatic dancer arm for handling large diameter soft wires between .200 and .375 (5.0 and 9.5mm) auxiliary arms and roller guides available



Warranty :: Two years



flat and deep baskets are available as a bolt on option to expand versatility

in addition to carrier payoff, the bolt on basket adapter enables loose bundles, and the flat basket with roller side arm pays off flat stock







CAPACITY
pounds

RANGE1
inches

RPM 2

PLATFORM
inches

CATCH
RING ID
inches

MIN ID
millimeters

MOTOR
horsepower

SHIP WT
pounds




P2000
P2000-1V
P2000-2V
P2000-3V

2000
2000
2000
2000

.025 - .148
.025 - .148
.025 - .148
.025 - .148
full temper wire

0 - 40
0 - 65
0 - 65
0 - 100

38 dia x 11 h
38 dia x 11 h
38 dia x 11 h
38 dia x 11 h

45
45
45
45

11
11
11
11

1 DC
1 AC
2 AC
3 AC

630
720
680
680

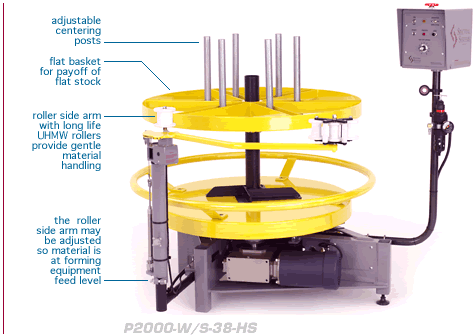

P2000HS optional Basket Adapter for flat and deep baskets avalable for all P2000 models
  :: flat basket with roller side arm for flat stock
  :: deep basket for loose bundles 1 Additional sizes of wire and shapes can be handled with special dance arms and guides
2 Other RPM ranges available
