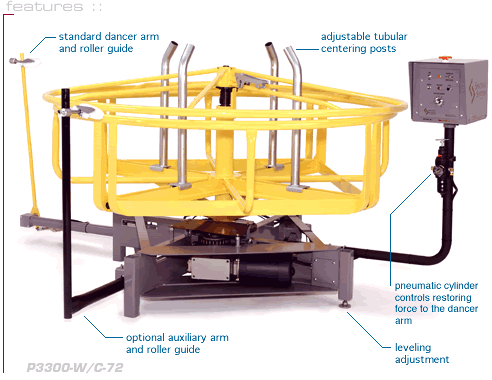

72" (1.83m) diameter basket is well suited for either bundles or carriers

higher power models are available to handle the increased torque demands that may be encountered with large diameter bundles or the need for higher rpm with smaller diameter bundles

the 8 spoke swash top is engineered to provide continuous wire escapement while roatating

pneumatic dancer arm with articulated roller guide

Optional
auxiliary arms and guides available



It is not recommended to payoff large diameter, high tensile wires without the swash top installed.

Warranty :: Two years




CAPACITY
pounds

RANGE 1
inches

RPM 2

BASKET DIM
inches

MIN ID
inches

PAYOFF HT
inches

MOTOR
horsepower

SHIP WT
pounds



P3300
P3300-1V
P3300-2V
P3300-3V
P3300-5V

3300
3300
3300
3300
3300

.080 - .205
.080 - .205
.080 - .205
.080 - .205
.080 - .205

0 - 20
0 - 25
0 - 45
0 - 60
0 - 60

72 x 16
72 x 16
72 x 16
72 x 16
60 x 16

12
12
12
12
12

40 - 50
40 - 50
40 - 50
40 - 50
42 - 52

1 DC
1 AC
2 AC
3 AC
5 AC

1800
1800
1800
1900
2100

    1 Additional sizes of wire and shapes can be handled with special dance arms and guides
2 Other RPM ranges available
