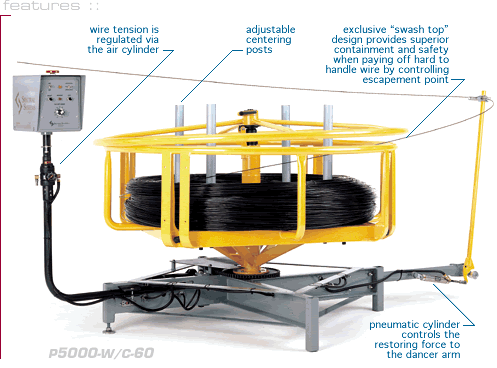

centering posts are easily adjusted using the power wrench supplied

unique "swash top" rotates with the basket, allowing wire to escape only at the stationary opening

the escapement point may be adjusted to any desired position

this containment system is designed to safely contain oil tempered, chrome silicon, and other high tensile wires less than .205" (5.2mm) diameter



It is not recommended to payoff large diameter, high tensile wires without the swash top installed.

Warranty :: Two years







CAPACITY
pounds

RANGE 1
inches

RPM 2

BASKET DIM
inches

MIN ID
inches

PAYOFF HT
inches

MOTOR
horsepower

SHIP WT
pounds



P5000
P5000-1V
P5000-2V
P5000-3V
P5000-5V

5000
5000
5000
5000
5000

.080 - .205
.080 - .205
.080 - .205
.080 - .205
.080 - .205

0 - 20
0 - 25
0 - 45
0 - 60
0 - 60

60 x 16
60 x 16
60 x 16
60 x 16
60 x 16

12
12
12
12
12

40 - 50
40 - 50
40 - 50
40 - 50
42 - 52

1 DC
1 AC
2 AC
3 AC
5 AC

1600
1600
1800
1800
2100
    1 Additional sizes of wire and shapes can be handled with special dance arms and guides
2 Other RPM ranges available
