optimal wire diameter range is .160" to .440" (4 to 11mm) however diameters up to .500" (12.7mm) have been successfully handled on this machine.

smaller diameters may be accommodated by using a lighter dancer arm.

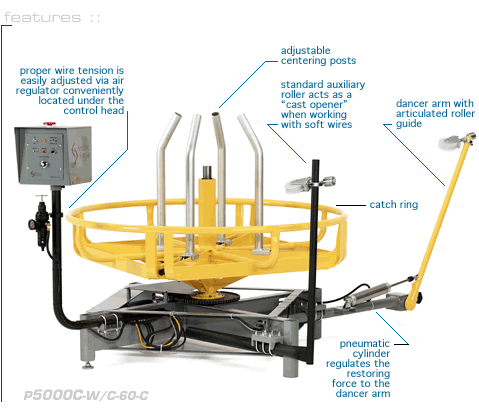

Basket Features
60" (1.52m) basket I.D.

adjustable centering posts accommodate most carrier stands for I.D.'s from 12" to 45" (.305 to 1.14m)

8" (150mm) tall catch ring prevents loose wire from slipping under the machine

Performance
1 HP (.75 kW) model is designed for applications with relatively low feed requirements of less than 80 fpm (25 m/min) such as automatic wire formers, four-slides, and punch presses

more powerful and faster drive trains are available in the 2V and 3V models (1.5 and 2.2 kW) for rapid feed rquirements

Warranty :: Two years






CAPACITY
pounds

RANGE 1
inches

RPM 2

BASKET DIM
inches

MIN ID
inches

PAYOFF HT
inches

MOTOR
horsepower

SHIP WT
pounds



P5000
P5000-1V
P5000-2V
P5000-3V
P5000-5V

5000
5000
5000
5000
5000

.080 - .205
.080 - .205
.080 - .205
.080 - .205
.080 - .205

0 - 20
0 - 25
0 - 45
0 - 60
0 - 60

60 x 16
60 x 16
60 x 16
60 x 16
60 x 16

12
12
12
12
12

40 - 50
40 - 50
40 - 50
40 - 50
42 - 52

1 DC
1 AC
2 AC
3 AC
5 AC

1600
1600
1800
1800
2100
    1 Additional sizes of wire and shapes can be handled with special dance arms and guides
2 Other RPM ranges available
