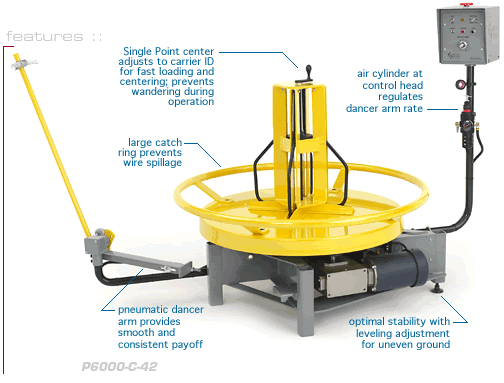

The P6000 is a heavy duty payoff primarily designed to handle wire on carriers over a wide range of diameters, from .060" to .190" (1.6 to 4.5mm), that do not require safety containment. a wide range of power trains is available to suit specific speed and torque requirements optional heavy duty dancer arm available for soft wires up to .440" (11mm) optional bolt on basket adapter increases versatility by allowing the use of loose bundles auxiliary arms and wire / roller guides available pneumatic dancer arm makes tension adjustment easy over a wide range of wires and tempers
Warranty :: Two years |
||||
|
CAPACITY |
RANGE |
RPM |
BASKET DIM |
MIN ID |
PAYOFF HT |
MOTOR |
SHIP WT |
||
P6000 |
6000 |
.062 - .180 |
25 |
42 |
11 |
20 |
1 DC |
725 |
||
