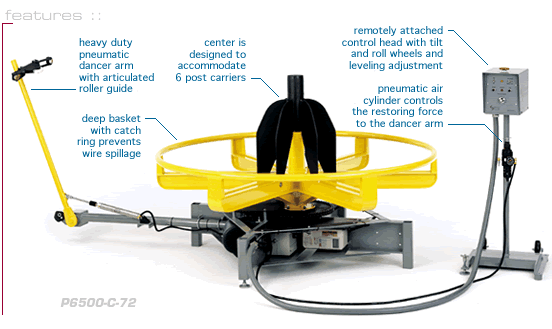

The P6500 is designed to payoff large six post carriers of low tensile wire, .125" to .500" (3.2 12mm), where containment is not a safety issue.This payoff is well suited for wire-formers, four-slides and cold heading equipment. Standard Features 72" (1.83m) diameter basket with catch ring to prevent wire spillage 2HP (1.5 kW) variable frequency vector drive train effectively controls the load Options Warranty :: Two years |
|||||
|
CAPACITY |
RANGE |
RPM |
BASKET DIM |
MIN ID |
PAYOFF HT |
MOTOR |
SHIP WT |
||
P6500-2V |
6500 |
.125 - .500 |
0 - 35 |
72 x 6 |
24 |
23 |
2 AC |
1500 |
||
