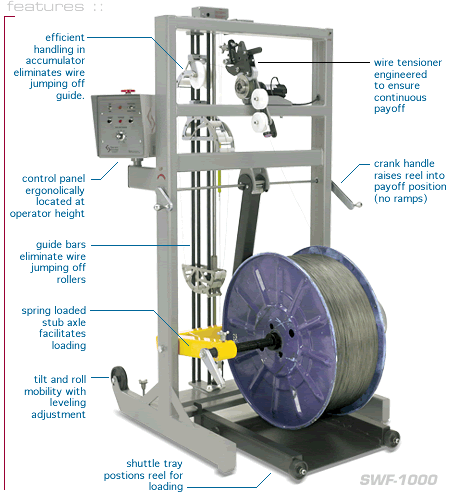

Spectral is proud to offer the SWF-1000, an adjustable tension system for reels which addresses and solves problems associated with paying off wire from reels. The SWF-1000 incorporates thoughtfully engineered features which significantly increase production.

Wire Management
Wire range from .015 to .100
(.40 to 2.5mm)

Simple single loop threading system

Tensioner system maintains tension between reel and rollers to prevent wire tangling

Adjustable tension payoff - typically 12 oz. to 5 lbs. (0.35 kg to 2.3 kg]

Superior Performance
Optional coaxial accumulator for high instantaneous demands (SWF-1000-AA)

High performance configurations available

Human Engineering
Fast and easy, one person, loading and threading (no tools)

Direct drive axles (no belts to connect)

Compact footprint of 48" x 40"
(1.22m x 1.02m)

Warranty :: Two years
